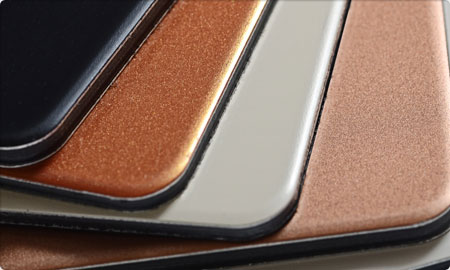

Composite Board
High polish, or silver brushed finish in your choice of either 3.0mm or 4.0mm. May other option are available, please contact us.
We also design front panels made from light, durable composite board. Our composite board consists of plastic fused between two thin layers of aluminum, creating the excellent durability of aluminum in a much lighter weight. The durability and light weight is particularly useful in interior and exterior signs, name plates, electrical devices, and any engraved front panels where the color of the plastic shows through the aluminum finish to enhance the panel design. Engraving can also be filled in with paint available in a variety of colors.
Composite Board Features
Aluminum Composite Panel specially developed to meet modern design needs. It gives you the certainty of getting a high-quality product with the best features with the following variety of choices:
- High flexural strength by low weight
- Low weight per sq ft., lighter than aluminum
- Breakage and impact resistant
- Non-corroding
- High surface quality
- Vibration damping and sound absorbing
- Non-polluting and recyclable
- in-door and out-door
Technical Data
| Panel thickness | 3.0mm (in Stock), 4.0mm (available) |
| Weight | 3.8 kg/m² = 0.78 lb/sq ft (/Aluminum 8.0 kg/m² = 1.64 lb/sq ft) |
| Alloy | 3005 H 46 |
| Tensile strength | (Rp) 185 – 240 N/mm² |
